OBDSTAR MT101 Automotive Dash Drive Device Support dashboard/ AC Panel/ Radio/ Gear lever/ ABS handbrake Models

Nowadays, many cars have dashboard, audio, gear lever, handbrake modules, etc., which are activated by CAN communication with the relevant modules in the car to bring the mainframe into the drive state. This function can simulate CAN communication to activate the secondary power supply and bring the main unit into drive, so that the main unit can be tested and verified. It also eliminates the need to purchase a large number of boot platforms and wiring harnesses for each vehicle model, saving a large amount of money for the automotive mechanic.



OBDSTAR MT101 Features

1. using STM32 processor for fast running speed.
2. support for hundreds of instrument types of drivers.
3. easy and intuitive menu for you to quickly master the operation of the device.
4. the wiring diagram can be accessed via OBDSTAR APP
5. the device is portable and cost-effective.
6. Mini USB upgrade cable connects directly to the computer for one-click upgrade.

Supported brands

1. for Audi
2. for BMW
3. for Porsche
4. for Mercedes-Benz
5. for Volkswagen
6. for Dodge
7. for FORD
8. for Jaguar
9. for Lamborghini
10. for Rolls-Royce
11. for Land Rover
12. for Volvo

OBDSTAR mobile APP function diagram

1) Main interface of Test Platform

2) Dash Pinout usage

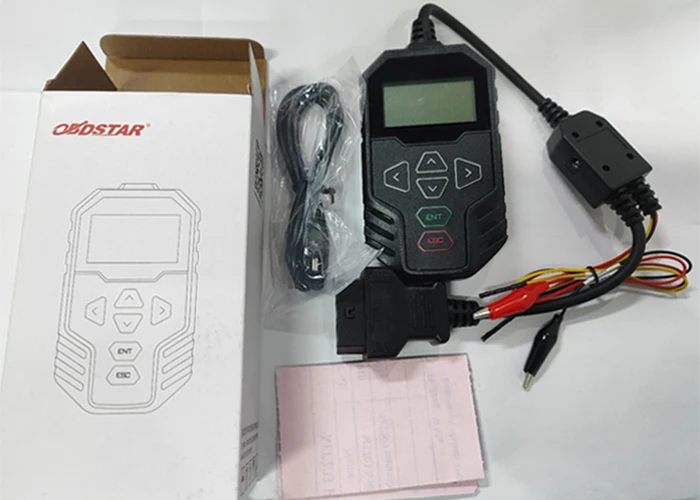

Package List:

1pc x OBDSTAR MT101
